API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well

114.3mm Float Collar

70MPa Float Shoe

204°C Seal Cementing Tool

Miejsce pochodzenia:

Jiangsu, Chiny

Nazwa handlowa:

SWS

Skontaktuj się z nami

Poprosić o wycenę

API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well

Szczegóły Produktu

wymiar:

50*30*30

Waga:

10 kg

Komponenty podstawowe:

Zawór

Typ zaworu:

Jednorazowy zawór i podwójny zawór

Typ przetwarzania:

Kucie

Specyfikacja:

2-3/8~20"

Typ wątku:

BTC\LTC\Wątek specjalny\EU\NU

Stal stalowy:

N80\L80\P110

Otworzył OD:

6 "

Id:

4 3/4"

Min nudzi:

Typ wątku:

5 1/2 "LCSG

Ocena ciśnienia:

70MPA

Ocena temperatury:

204°C

Rozmiar zastawki:

70 mm i 90 mm

Produkty powiązane

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Uzyskaj najlepszą cenę

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

Uzyskaj najlepszą cenę

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

Uzyskaj najlepszą cenę

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-519-83553967

Leo@service-js.com

86-519-83553967

Skontaktuj się teraz

Opis produktu

API 4-1/2" 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool

Product Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Product Features

Essential casing equipment for primary cementing operations in oil wells
Guides casing to total depth and prevents contaminated mud entry
Provides landing point for casing wiper plugs
Reinforces lower end of casing string for improved cement slurry displacement accuracy
Hi Flow valves reduce fluid erosion and minimize pressure drop
Available in two valve sizes: 70mm and 90mm
PDC drillable composite plastic valve components
Standard seal rated to 150°C with optional 204°C seal
Valve body molded with fiber phenolic for 70MPa and 204°C seal
High-quality Canadian phosphor bronze springs with excellent restoring force

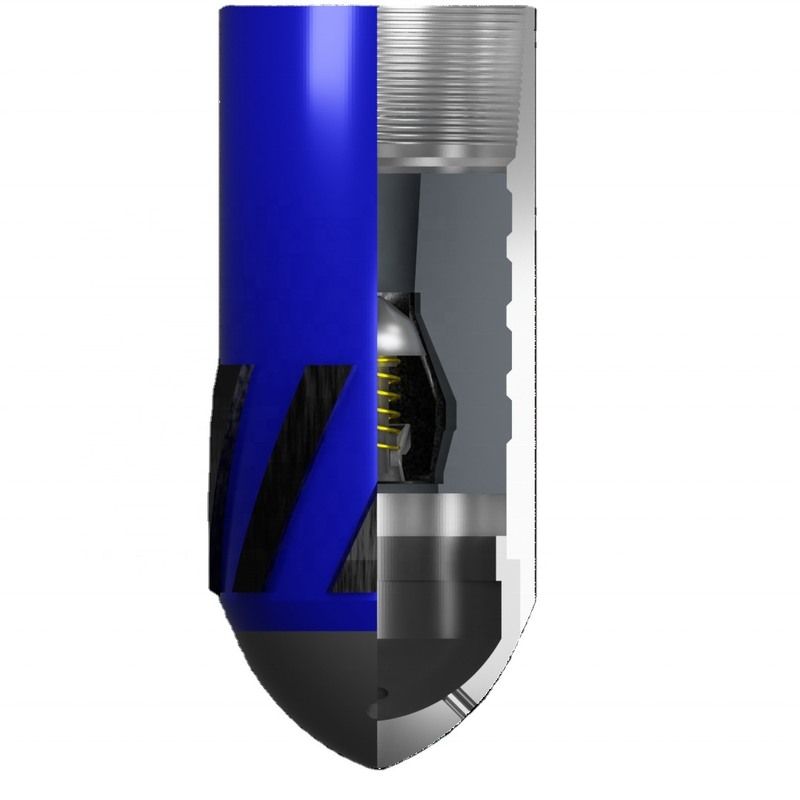

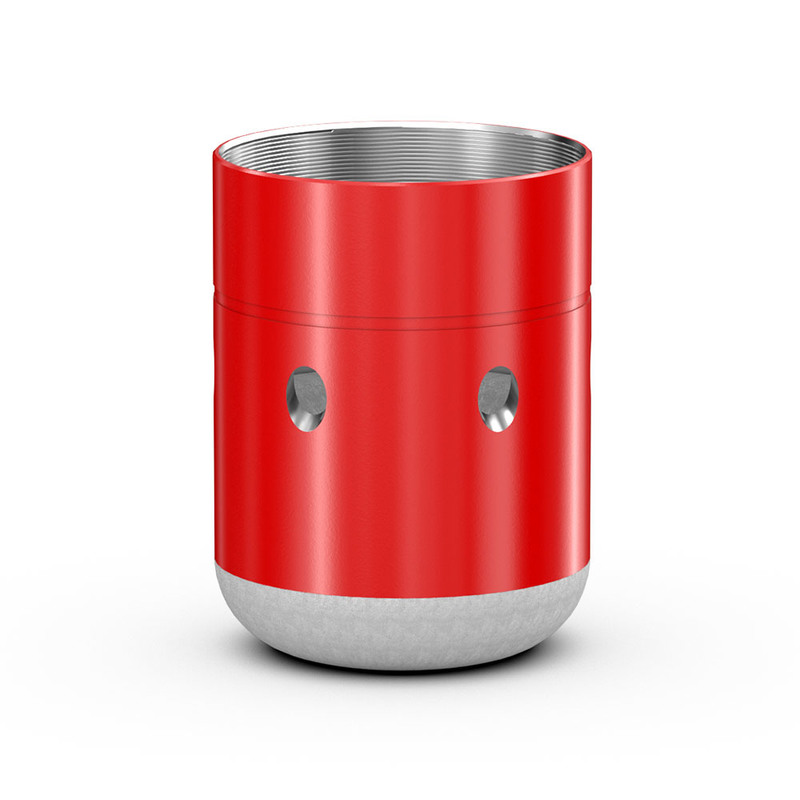

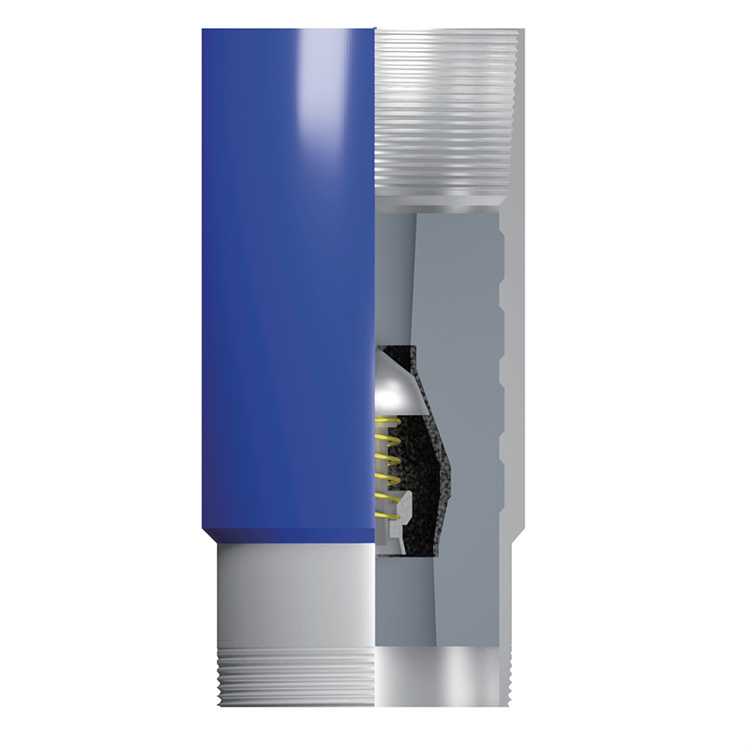

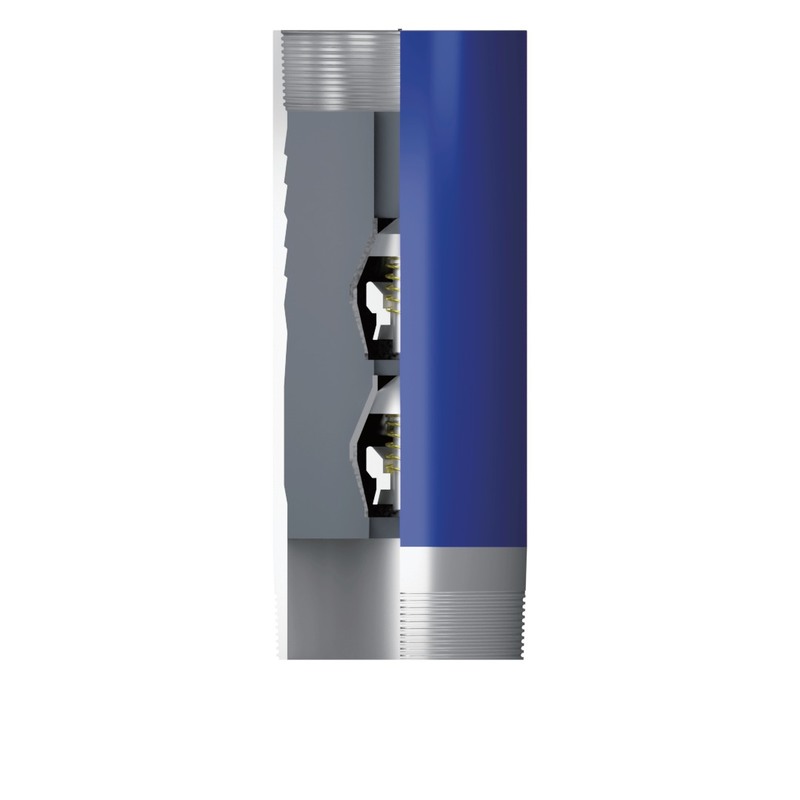

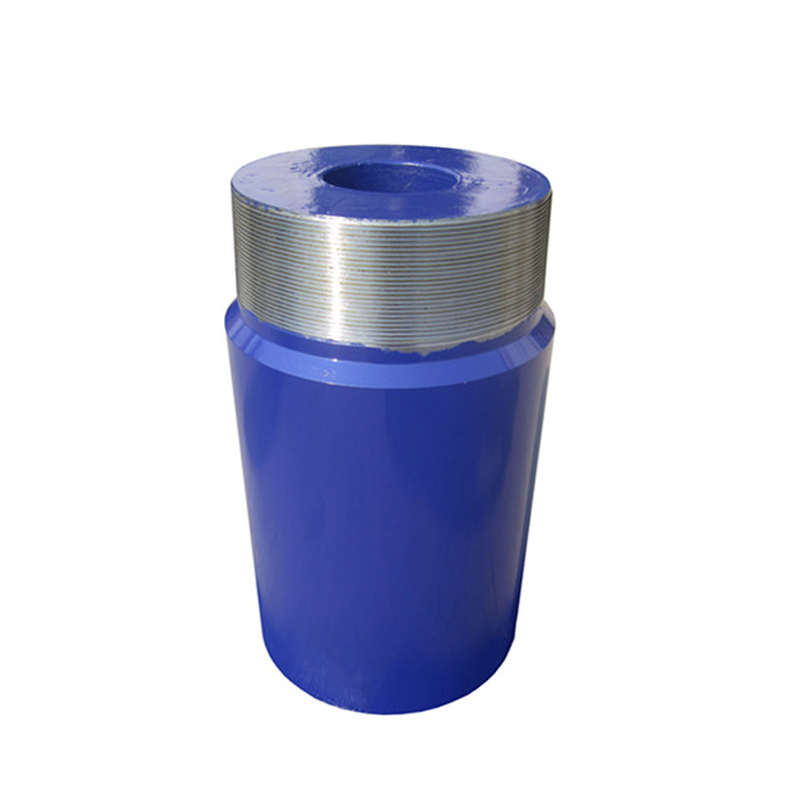

Product Images

Frequently Asked Questions

When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Could I have prices of your products?

Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Can I get a lower price if I order large quantities?

Yes, cheaper prices are available for larger quantity orders.

Do you inspect the finished products?

Yes, each step of production and finished products will be inspected by our QC department before shipping.

What about the lead time for the mass production?

The lead time depends on the order quantity and the season you place the order.
