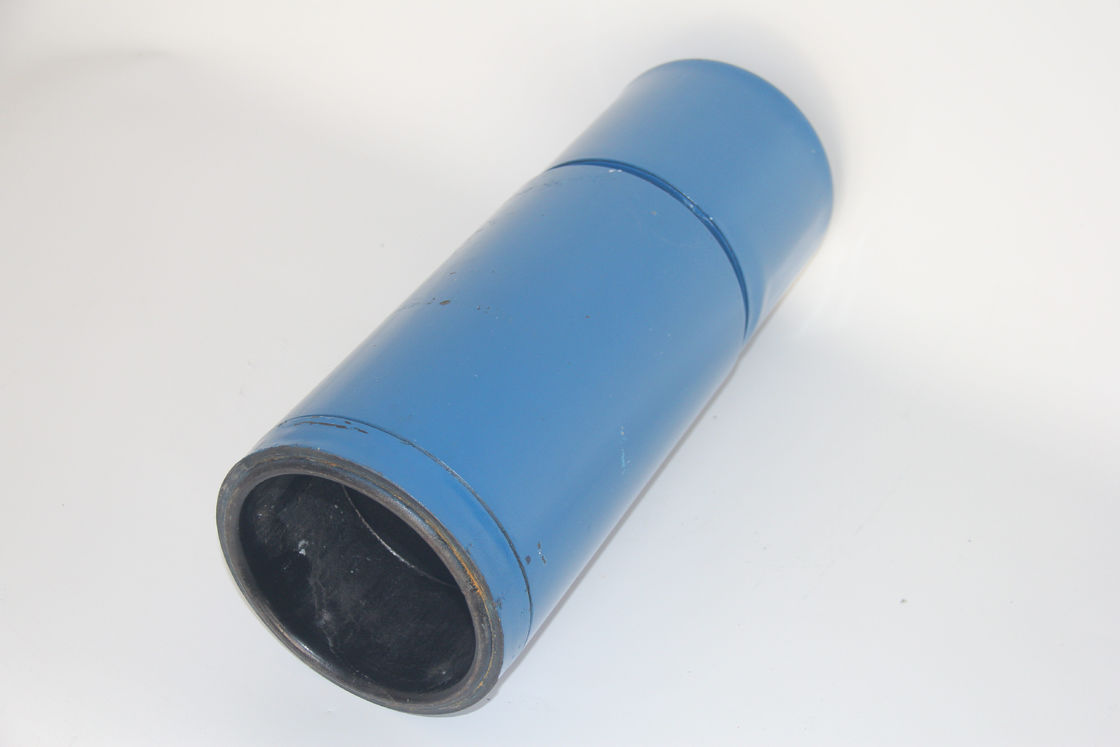

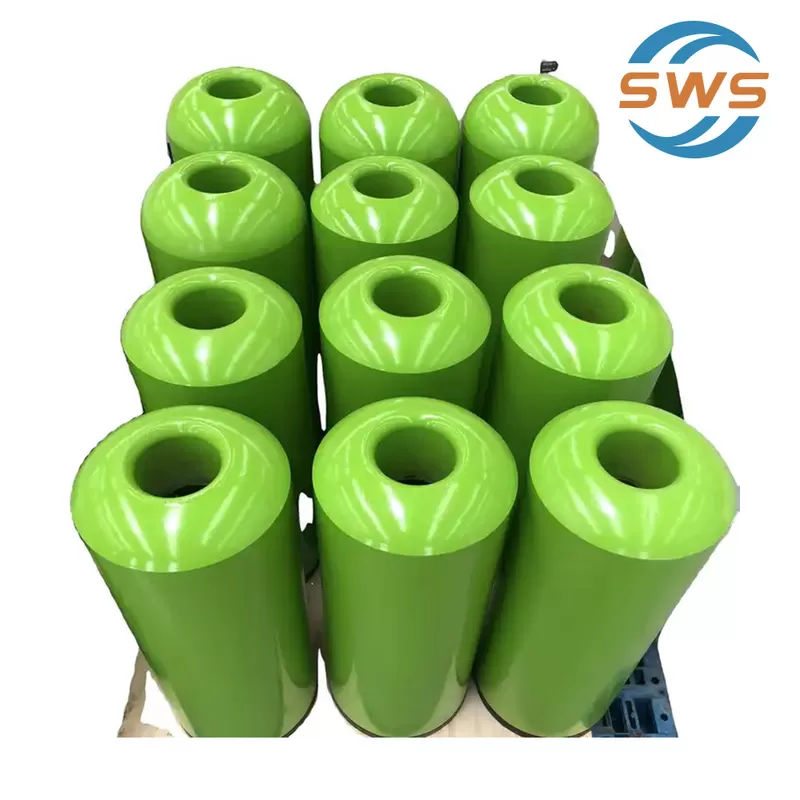

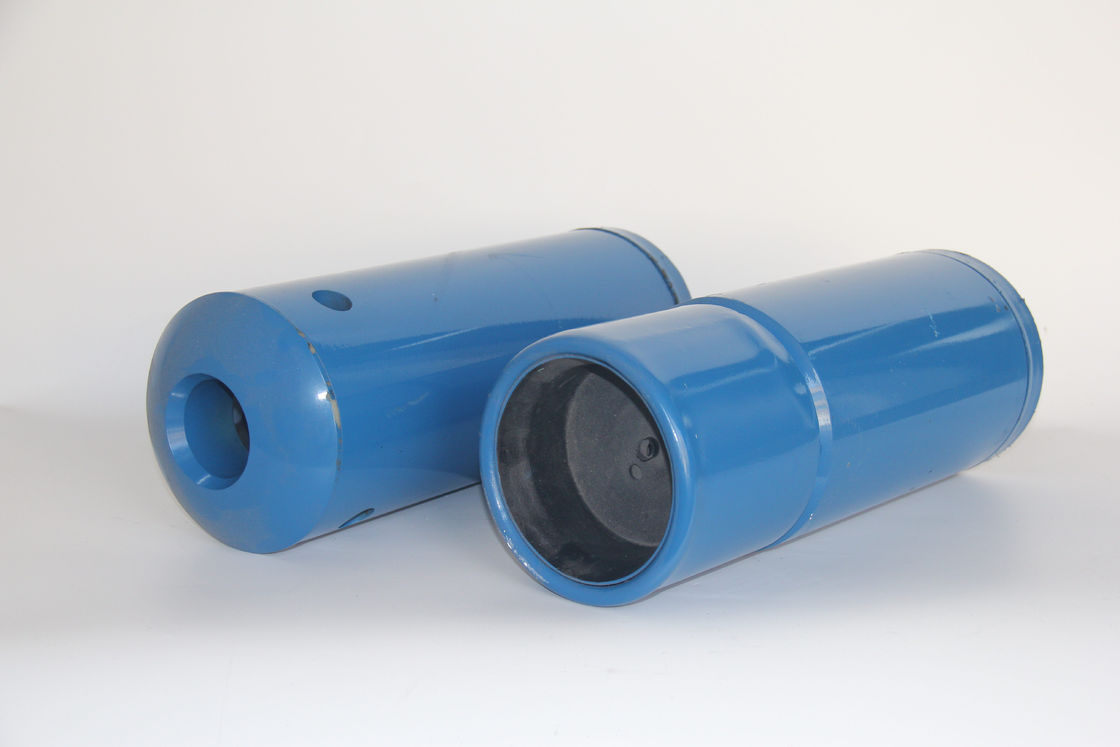

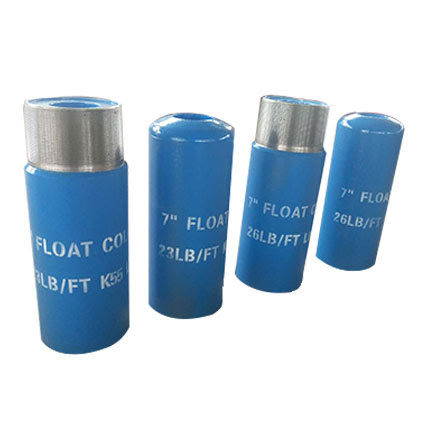

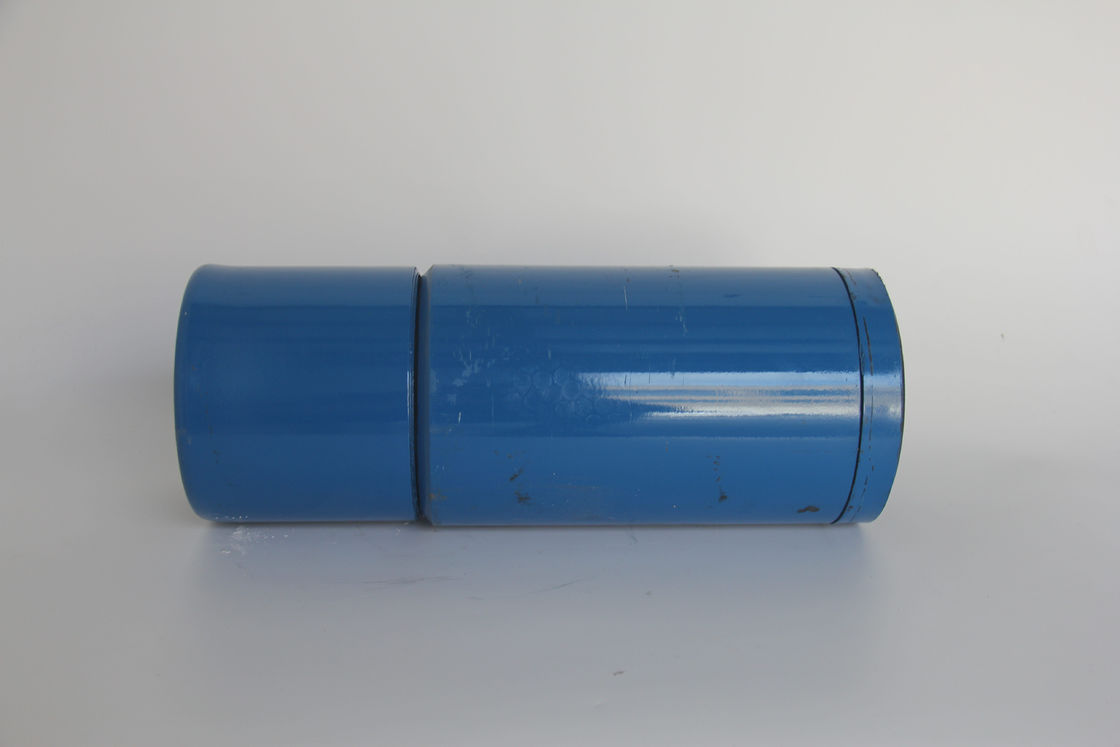

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

API standard float collar

5 1/2-9 5/8 float collar

15000psi oilfield drilling collar

Miejsce pochodzenia:

Jiangsu, Chiny

Nazwa handlowa:

SWS

Orzecznictwo:

API ISO

Skontaktuj się z nami

Poprosić o wycenę

Szczegóły Produktu

Wymiar:

5"-20"

Waga:

10 kg

Typ wątku:

STC LTC BTC EUE NUE XC

Tworzywo:

P110

Rozmiar:

5 1/2"-9 5/8"

Presja pracy:

15000ssi

Otworzył OD:

6 "-14 3/8"

Id:

4 3/4 "-12 3/8"

Min nudzi:

2 "-2 3/8"

Rozmiar zastawki:

70 mm i 90 mm

Temperatura uszczelnienia:

150 ° C (opcjonalnie 204 ° C)

Materiał ciała zaworu:

Włókno fenolowe

Ciśnienie ciała zaworu:

70MPA

Materiał wiosenny:

Brąz fosfowy C510

Materiał uszczelniający tłok:

Hnbr

Produkty powiązane

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

Uzyskaj najlepszą cenę

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

Uzyskaj najlepszą cenę

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

Uzyskaj najlepszą cenę

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-519-83553967

Leo@service-js.com

86-519-83553967

Skontaktuj się teraz

Opis produktu

API Cementing Tools Oilfield Drilling Equipment Casing Float Collar Float Shoe Standard Single Valve

Product Description

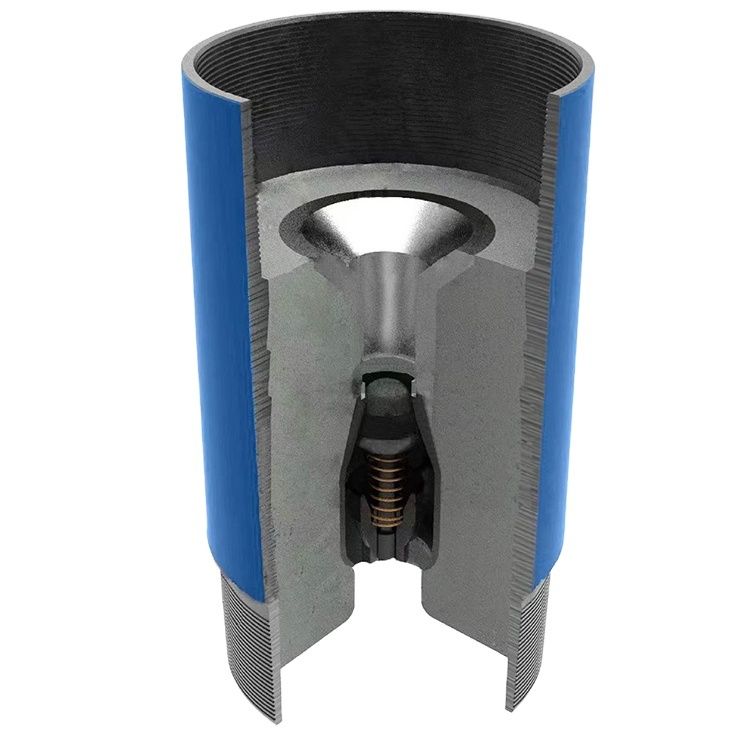

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. It also provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures precise cement slurry displacement.

Key Features

Hi Flow valves to reduce fluid erosion and minimize pressure drop
Available in two sizes: 70mm and 90mm
PDC drillable composite plastic materials for valve components
Standard seal rated to 150°C with optional 204°C seal
Valve body molded with fiber phenolic, rated for 70MPa and 204°C
High-quality spring from Canada Victory Spring Company
Plunger seal top molded with HNBR, rated for 70MPa and 204°C

Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
