API Standard Cementing Float Collar 5-20 Inch for Oilfield Drilling

API standard float collar

oilfield drilling float collar

5-20 inch cementing collar

Miejsce pochodzenia:

Jiangsu, Chiny

Nazwa handlowa:

SWS

Orzecznictwo:

API

Skontaktuj się z nami

Poprosić o wycenę

API Standard Cementing Float Collar 5-20 Inch for Oilfield Drilling

Szczegóły Produktu

Wymiar:

5"-20"

Waga:

10 kg

Typ wątku:

STC LTC BTC EUE NUE XC

Tworzywo:

L80-13CR

Komponenty podstawowe:

Zawór

Cześć rozmiary zaworów przepływowych:

70 mm i 90 mm

Standardowa ocena pieczęci:

150 ° C.

Opcjonalna ocena pieczęci:

204°C

Materiał ciała zaworu:

Włókno fenolowe

Ciśnienie ciała zaworu:

70MPA

Materiał wiosenny:

Brąz fosfowy C510

Materiał uszczelniający tłok:

Hnbr

Ciśnienie uszczelnienia tłoka:

70MPA

Temperatura uszczelnienia tłokowego:

204°C

Zdolność produkcyjna:

≥10000 szt. Miesięcznie

Produkty powiązane

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

Uzyskaj najlepszą cenę

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

Uzyskaj najlepszą cenę

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

Uzyskaj najlepszą cenę

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

Uzyskaj najlepszą cenę

Skontaktuj się z nami

86-519-83553967

Leo@service-js.com

86-519-83553967

Skontaktuj się teraz

Opis produktu

API Cementing Tools Oilfield Drilling Equipment

Casing Float Collar Float Shoe Eccentric Nose Down Jets

Product Overview

Float equipment serves as the backbone of casing equipment used during primary cementing operations. These essential components guide the casing to total depth and prevent contaminated mud from entering the casing while providing a landing point for casing wiper plugs.

Key Features

Reinforces the lower end of the casing string
Ensures precise cement slurry displacement
Hi Flow valves reduce fluid erosion and minimize pressure drop
Available in two sizes: 70mm and 90mm
PDC drillable composite plastic materials for valve components
Standard seal rated to 150°C with optional 204°C seal
Valve body molded with fiber phenolic, 70MPa and 204°C seal
High-quality spring with phosphor bronze C510 material
Plunger seal top molded with HNBR, 70MPa and 204°C seal

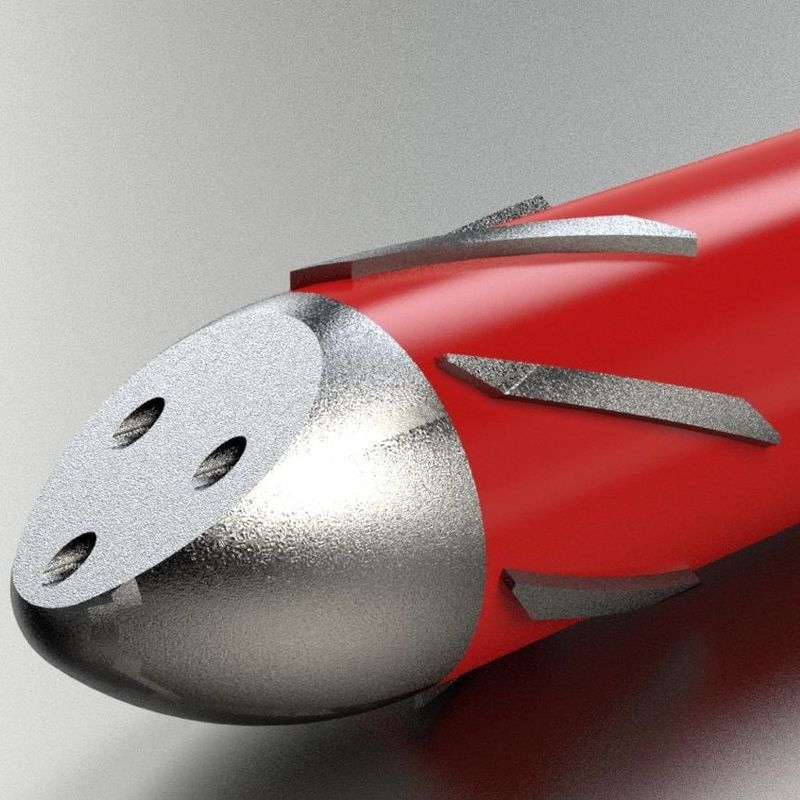

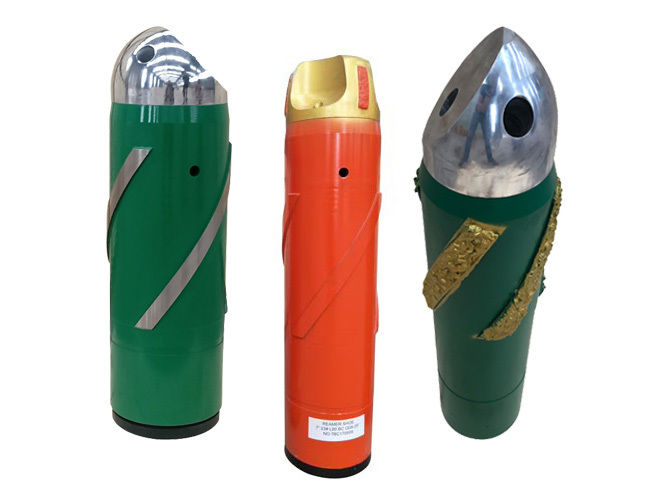

Product Images

Technical Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Manufacturing Facility

Certifications

Packaging

Frequently Asked Questions

Q1: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Q2: Could I have prices of your products?

A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, we offer more competitive prices for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, each step of production and finished products undergo thorough inspection by our QC department before shipping.

Q5: What about the lead time for the mass production?

A: The production timeline depends on the order quantity and the season when you place the order.
